Meferi ME74
Code: MEF002Product detailed description

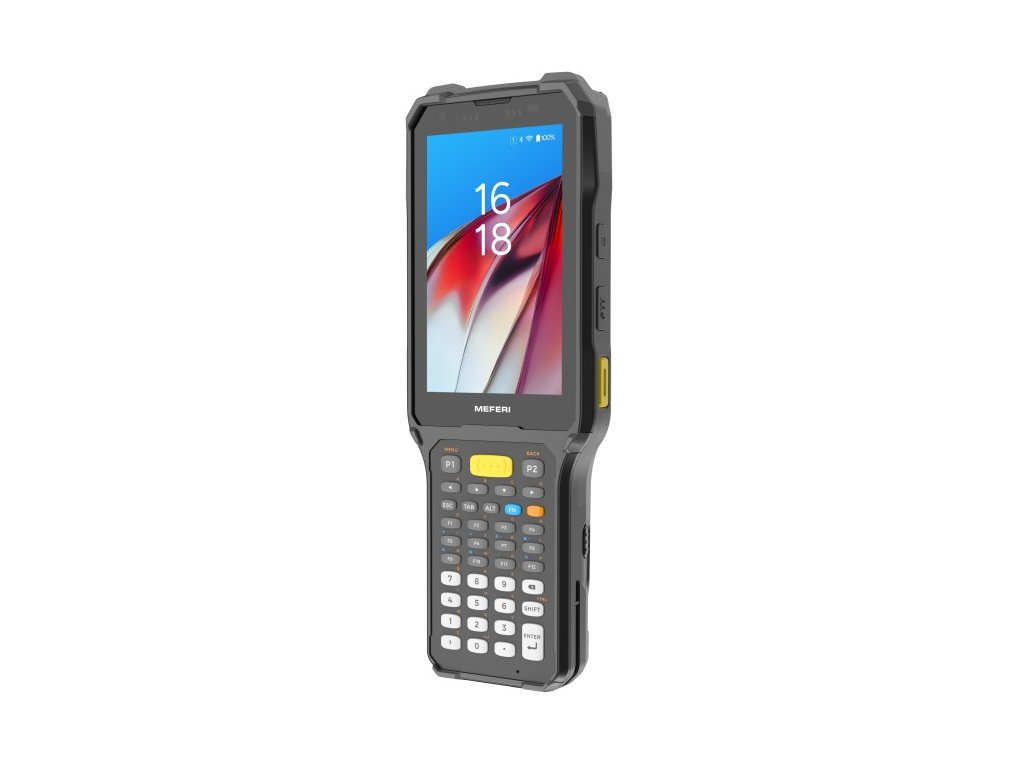

Meferi ME74 is an extremely durable terminal with a keyboard and Android 13 system, which will find its application primarily in logistics operations. The device is dust and water resistant and suitable for extreme environments. In addition to the keyboard and NFC, the device also offers various types of scanners. The version with the SE58 scanner has a range of several meters.
Become a partner
We provide the following for the terminals we sell:
- technical support
- warranties and guarantees
- additional service
- documentation for integration
- up to three-year warranty
- local presence
- presentation of terminals in our showroom in Brno.
If you are interested in wholesale cooperation, please register.
Specification
| Parametr | ME74 (MEF002) |
| OS | Android 13 - 18 |
| CPU | Qualcomm QCM4490, 2.4GHz, 8-core |
| RAM | 4 GB |
| 6 GB optional | |
| ROM | 64 GB |
| 128 GB optional | |
| Display | 4,3" IPS, 800 x 480, Sklo Corning Gorilla Glass |
| SIM | 1x nano SIM, 1x eSIM |
| Wi-Fi | 2.4GHz:802.11b/g/n-up to 286.8 Mbps |
| 5GHz:802.11a/n/ac-up to 2402 Mbps | |
| 6GHz: 802.11ax—up to 2402 Mbps | |
| IEEE 802.11a/b/g/n/ac Wave1&2 (160MHz | |
| option)/d/e/h/i/k/r /v/w/ax, WIFI 6/6E | |
| Bluetooth | 5.2+BR/ EDR+BLE |
| NFC | ISO14443 Typ A a B; Mifare/FelliCa |
| and ISO15693 karty, P2P mód, card emulation | |
| Scanner | Standard: HS7 |
| Ooptional: SE4770, N6803FR, SE58 (long range) | |
| GPS | GPS, A-GPS, Beidou, GLONASS, Galileo |
| Camera | Front: 8 Mp |
| Zadní: 13 Mp, autofocus, blesk, 1080p video | |
| Key buttons | Optional key |
| Power on | |
| Scanner (L/R) | |
| Volume (+/–) | |
| 31-39 keys on keyboard | |
| Audio | 2W repro |
| 2x mic with noise cancelation | |
| Accesories | Power adapter |
| USB C cable | |
| Pásek na ruku | |
| Optional accesories | Charging craddle for 1 battery |
| Charging craddle for 4 batteries | |
| Charging craddle for 8 batteries | |
| Pistol grip | |
| Pistol grip strap | |
| Protective glass | |
| Case | |
| Dimension | 220,2 х 81,4 х 29,6 mm |
| Endurance | IP68, 1,8m drop test |
| Operational temperature | -30°C až 60°C |
| Storage temperature | -40°C až 70°C |
| Sensor | Akcelerometr, magnetometr, proximity senzor, světelný senzor |
| Certification | GMS/AER/SOTI/SHADOWALK |
