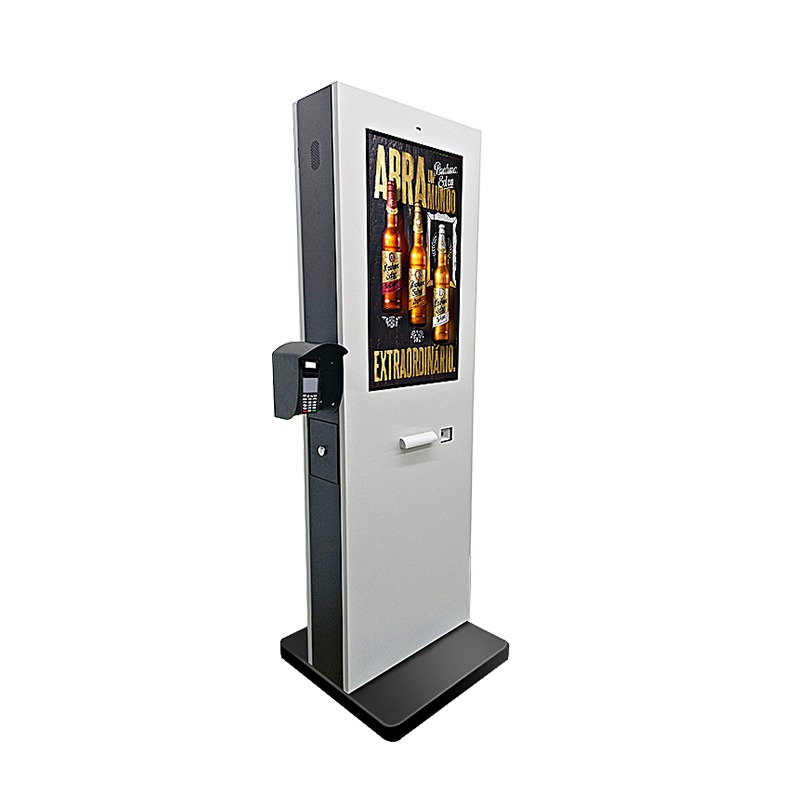

S-KIOSK T01 - outdoor totem with 32" screen, printer and 2D scanner
Code: 9135Product detailed description
Outdoor totem kiosk with large 32" display, integrated 80mm printer with cutter, 2D scanner with NFC and IP65 resistance. The kiosk can be equipped with an external position for a payment terminal.
The kiosk is available in various configurations, the possible combinations of which can be found in the table below.
| S-KIOSK T01 | ||
| Android version | Windows/Linux version | |
| CPU + OS | RK3288 + Android 7 | Celeron + Windows 10 |
| RK3328 + Android 9 | Core i3 + Windows 10 | |
| RK3568 + Android 11 | Core i5 + Windows 10 | |
| Memory | 2+8 GB (RK3288) | 4+128 GB (standard) |
| 2+16 GB (RK3328, RK3568) | custom RAM + SSD | |
| LAN | 100/1000 Mb/s | 100/1000 Mb/s |
| Wi-Fi | 802.11 b/g/n | 802.11 b/g/n |
| Bluetooth | yes | no |
| NFC | yes | yes |
| Interface | 1× HDMI | 1× HDMI |
| 1× RJ45 | 1× RJ45 | |
| 1× Audio | 1× Audio | |
| 1× SD Card | 1× VGA | |
| 5× USB, 2× USB HOST | 4× USB | |
| Common parameters | ||
| Display | 32", 1920 × 1080 px, IPS, 1500 cd/m2, 1200:1, 178°/178°(H/V) | |
| Touch Type | 10 points real PCAP touch screen | |
| Glass on screen | 5 mm tempered glass | |
| Shell material | Galvanized steel + outdoor power painting, anti-corrossion, IP65 | |
| Power Consumption | 300 W | |
| Life Time | > 50000 (hours) | |
| Scanner | 1D/2D scanner with NFC reader | |
| Printer | 80 mm thermal printer with cutter | |
| POS terminal | Optional | |
| Operation temperature | -40 – 55 °C | |
| Storage temperature | -20 – 60 °C | |
| Optional accessories | Stand, roof | |
The standard delivery time of the kiosk in the selected configuration is up to 4 weeks by air, 8-10 weeks by sea. In case of interest, the S-KIOSK kiosks can be modified (for example payment terminal position), but in this case the delivery time may be correspondingly longer.
If you are interested in this kiosk and the pricing of a specific configuration, do not hesitate to contact us by e-mail at sales@satomar.cz, or by phone at +420 602 307 070.
About the brand
S-KIOSK is a private brand of the company Satomar, s.r.o., under which it markets kiosks with optional configurations and the possibility of customization according to the customer's wishes. The goal of the brand is to deliver exactly the kind of equipment that fits exactly into the installation environment and perfectly fulfills the purpose for which the given kiosk was chosen.
