iMin Crane 1 – modular 16"–32" kiosk with Android 13 and GMS

Code: IMI059 IMI060 IMI061 IMI077 IMI080 IMI099 Choose variant

New (bool) News

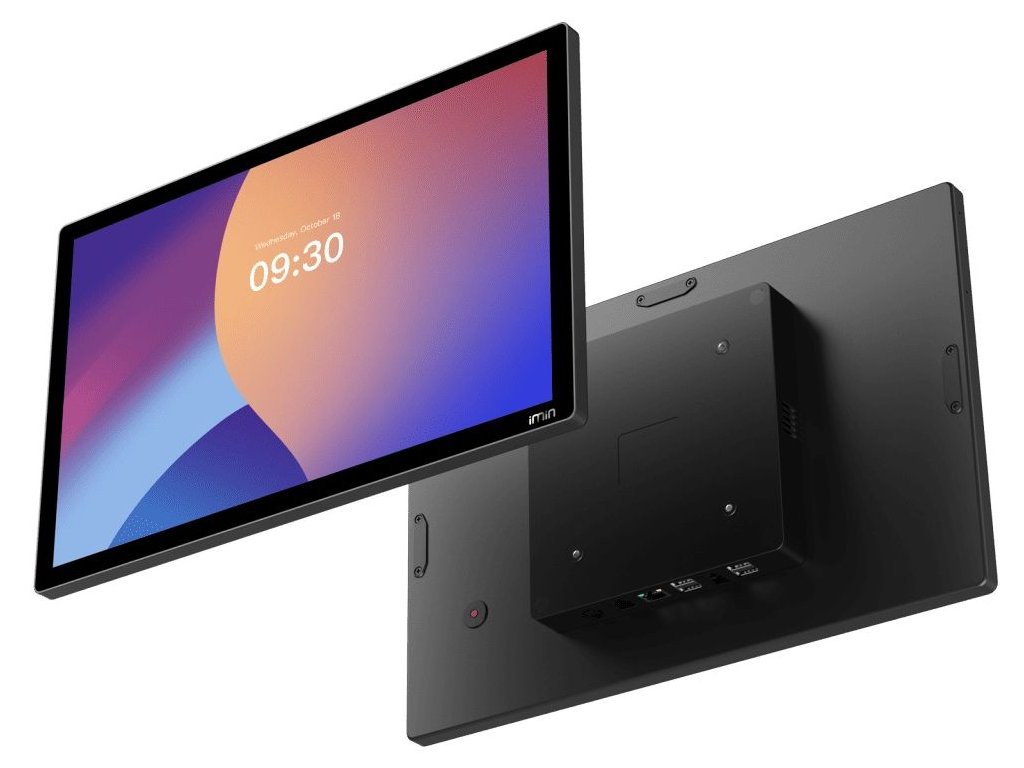

iMin Crane 1 modular kiosk with touch display

€768,19 €974,64 €1 150,75 €1 387,56 €1 145,41 €1 375,21 from €768,19 €929,51 incl. VAT €1 179,31 incl. VAT €1 392,41 incl. VAT €1 678,95 incl. VAT €1 385,95 incl. VAT €1 664 incl. VAT from €929,51 incl. VAT

Not available Not available On stock (3 ks) On stock (3 ks) Not available Not available Choose variant

Choose iMin Crane1 configuration ?
Chosen variant is not available. Reset selected parameters.

iMin Crane 1 – modular kiosk with 16" to 32" display, Android 13 and Wi-Fi 6. Add NFC, scanner, MSR reader or printer modules.

Detailed information

Show all related products

Product detailed description

iMin · Crane 1

iMin Crane 1 – modular kiosk with 16" to 32" display

A modular interactive display with Android 13, an octa-core CPU and Wi-Fi 6. Add NFC, a scanner, MSR reader, printer or status light and build the kiosk you need.

4 sizesAndroid 13Wi-Fi 6Bluetooth 5.32-year warranty

16" – 32"

4 display sizes

4+64 / 8+128

GB RAM + ROM

accessory modules

stand types

Why iMin Crane 1

One platform for self-service, retail and hospitality.

Four sizes

16", 21.5", 27" and 32" – from counter terminal to large-format kiosk.

Modular accessories

Status light, NFC, scanner, MSR reader and printer connect via pogo pins.

Second display

Optional 16" or 10.1" customer-facing display.

Stands

Floor, table, cashier and retail stands.

Available variants

Choose the display size and memory.

16" · 4+64 GB IMI059Display: 16" IPSResolution: 1920 × 1200Display size (W × H × D): 375 × 246 × 36.5 mmDisplay weight: 1.6 kgRAM + ROM: 4 GB + 64 GBGMS: yes 16" · 8+128 GB IMI080Display: 16" IPSResolution: 1920 × 1200Display size (W × H × D): 375 × 246 × 36.5 mmDisplay weight: 1.6 kgRAM + ROM: 8 GB + 128 GBGMS: yes 21.5" · 4+64 GB IMI060Display: 21.5" FHDResolution: 1920 × 1080Display size (W × H × D): 525 × 316.7 × 46.5 mmDisplay weight: 4.8 kgRAM + ROM: 4 GB + 64 GBGMS: yes 21.5" · 8+128 GB IMI099Display: 21.5" FHDResolution: 1920 × 1080Display size (W × H × D): 525 × 316.7 × 46.5 mmDisplay weight: 4.8 kgRAM + ROM: 8 GB + 128 GBGMS: yes 27" · 4+64 GB IMI061Display: 27" FHDResolution: 1920 × 1080Display size (W × H × D): 645.5 × 384 × 47.5 mmDisplay weight: 7.3 kgRAM + ROM: 4 GB + 64 GBGMS: no 32" · 4+64 GB IMI077Display: 32" FHDResolution: 1920 × 1080Display size (W × H × D): 746.5 × 441 × 56.5 mmDisplay weight: 9.3 kgRAM + ROM: 4 GB + 64 GBGMS: yes

GMS, NFC and payments

GMS – Google Mobile Services

GMS variants include Google Play, Search, Gmail and Services and suit SoftPOS and integrations relying on Google Services. GMS cannot be activated afterwards. Per the current price list all variants have GMS except the 27" (IMI061).

Payments via GP Tom

Contactless payments via GP Tom require NFC – all variants can be extended with the NFC module (IMI064) and need Android 9+.

Accessories and stands

Recommended accessories are listed below under related products – scanner, MSR reader, NFC module, status light and stands.

Partner program

For developers and kiosk solution integrators

Run your ordering, payment or information app on S-Kiosk devices. We help with printer, scanner and NFC integration.

✓ technical support and integration documentation✓ two-year warranty, service and spare parts in the Czech Republic✓ wholesale prices and loan units for pilot projects✓ device demos in our showroom in Brno

Product video

Technical specifications

Parameter	16" · 4+64 GB IMI059	16" · 8+128 GB IMI080	21.5" · 4+64 GB IMI060	21.5" · 8+128 GB IMI099	27" · 4+64 GB IMI061	32" · 4+64 GB IMI077
Display
Display	16" IPS	16" IPS	21.5" FHD	21.5" FHD	27" FHD	32" FHD
Resolution	1920 × 1200	1920 × 1200	1920 × 1080	1920 × 1080	1920 × 1080	1920 × 1080
Display size (W × H × D)	375 × 246 × 36.5 mm	375 × 246 × 36.5 mm	525 × 316.7 × 46.5 mm	525 × 316.7 × 46.5 mm	645.5 × 384 × 47.5 mm	746.5 × 441 × 56.5 mm
Display weight	1.6 kg	1.6 kg	4.8 kg	4.8 kg	7.3 kg	9.3 kg
Touch	10-point capacitive	10-point capacitive	10-point capacitive	10-point capacitive	10-point capacitive	10-point capacitive
Performance & software
OS	Android 13 (64 bit)	Android 13 (64 bit)	Android 13 (64 bit)	Android 13 (64 bit)	Android 13 (64 bit)	Android 13 (64 bit)
CPU	Octa-core: 2× Cortex-A78 2.2 GHz + 6× Cortex-A55 2.0 GHz	Octa-core: 2× Cortex-A78 2.2 GHz + 6× Cortex-A55 2.0 GHz	Octa-core: 2× Cortex-A78 2.2 GHz + 6× Cortex-A55 2.0 GHz	Octa-core: 2× Cortex-A78 2.2 GHz + 6× Cortex-A55 2.0 GHz	Octa-core: 2× Cortex-A78 2.2 GHz + 6× Cortex-A55 2.0 GHz	Octa-core: 2× Cortex-A78 2.2 GHz + 6× Cortex-A55 2.0 GHz
RAM + ROM	4 GB + 64 GB	8 GB + 128 GB	4 GB + 64 GB	8 GB + 128 GB	4 GB + 64 GB	4 GB + 64 GB
GMS	yes	yes	yes	yes	no	yes
Connectivity
Wi-Fi	Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5 GHz	Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5 GHz	Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5 GHz	Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5 GHz	Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5 GHz	Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5 GHz
Bluetooth	5.3	5.3	5.3	5.3	5.3	5.3
LAN	Ethernet 1000M	Ethernet 1000M	Ethernet 1000M	Ethernet 1000M	Ethernet 1000M	Ethernet 1000M
NFC	optional module (IMI064)	optional module (IMI064)	optional module (IMI064)	optional module (IMI064)	optional module (IMI064)	optional module (IMI064)
Ports	6× USB-A 2.0, USB-C, RJ12, RJ11, RJ45, DC, 3.5 mm audio jack, pogo pins	6× USB-A 2.0, USB-C, RJ12, RJ11, RJ45, DC, 3.5 mm audio jack, pogo pins	6× USB-A 2.0, USB-C, RJ12, RJ11, RJ45, DC, 3.5 mm audio jack, pogo pins	6× USB-A 2.0, USB-C, RJ12, RJ11, RJ45, DC, 3.5 mm audio jack, pogo pins	6× USB-A 2.0, USB-C, RJ12, RJ11, RJ45, DC, 3.5 mm audio jack, pogo pins	6× USB-A 2.0, USB-C, RJ12, RJ11, RJ45, DC, 3.5 mm audio jack, pogo pins
Other
Speaker	3 W mono	3 W mono	3 W mono	3 W mono	3 W mono	3 W mono
Power	100–240 V AC → 24 V / 2.5 A	100–240 V AC → 24 V / 2.5 A	100–240 V AC → 24 V / 2.5 A	100–240 V AC → 24 V / 2.5 A	100–240 V AC → 24 V / 2.5 A	100–240 V AC → 24 V / 2.5 A
Operating temperature	-10 to 50 °C	-10 to 50 °C	-10 to 50 °C	-10 to 50 °C	-10 to 50 °C	-10 to 50 °C
Certification	FCC, CE, IMDA, WEEE	FCC, CE, IMDA, WEEE	FCC, CE, IMDA, WEEE	FCC, CE, IMDA, WEEE	FCC, CE, IMDA, WEEE	FCC, CE, IMDA, WEEE
Warranty	2 years	2 years	2 years	2 years	2 years	2 years

PDFiMin Crane 1 – brochure / datasheet (PDF)Official manufacturer datasheet to download PDFiMin Crane 1 – datasheet (PDF)Official manufacturer datasheet to download

Specifications are subject to change without notice. Images are for illustration only.
