iMin Lark 1 – 6.5" rugged Android 13 mobile computer (PDA) with 2D scanner, IP68, 4G, NFC

Code: IMI074 IMI075 Choose variant

Brand: iMin

iMin Lark 1 odolný mobilní terminál s 2D skenerem

iMin Lark 1 odolný mobilní terminál s 2D skenerem – detail 2

iMin Lark 1 odolný mobilní terminál s 2D skenerem – detail 3

iMin Lark 1 odolný mobilní terminál s 2D skenerem – detail 4

iMin Lark 1 odolný mobilní terminál s 2D skenerem – detail 5

iMin Lark 1 odolný mobilní terminál s 2D skenerem – detail 6

€446,05 €683,89 from €446,05 €539,72 incl. VAT €827,51 incl. VAT from €539,72 incl. VAT

Not available Not available Choose variant

Choose iMin Lark1 configurations ?
Chosen variant is not available. Reset selected parameters.
Accept payments via Softpos apps Viva, GP Tom or others? ?

iMin Lark 1: rugged 6.5" Android 13 PDA with Totinfo or Zebra 2D scanner, IP68, GMS, NFC, 4G and a 5000 mAh battery for warehouse and logistics.

Detailed information

Product detailed description

iMin · Mobile computer (PDA)

iMin Lark 1 – rugged mobile computer for warehouse, logistics and retail

The iMin Lark 1 is a rugged mobile computer with a 6.5" display, IP68 protection and a 2D scanner that reads 1D and 2D codes in milliseconds. A 2.2 GHz octa-core CPU, Android 13 with GMS and a removable 5000 mAh battery last a full shift.

IP68, 1.5 m drop2D scanner5000 mAh battery2-year warranty

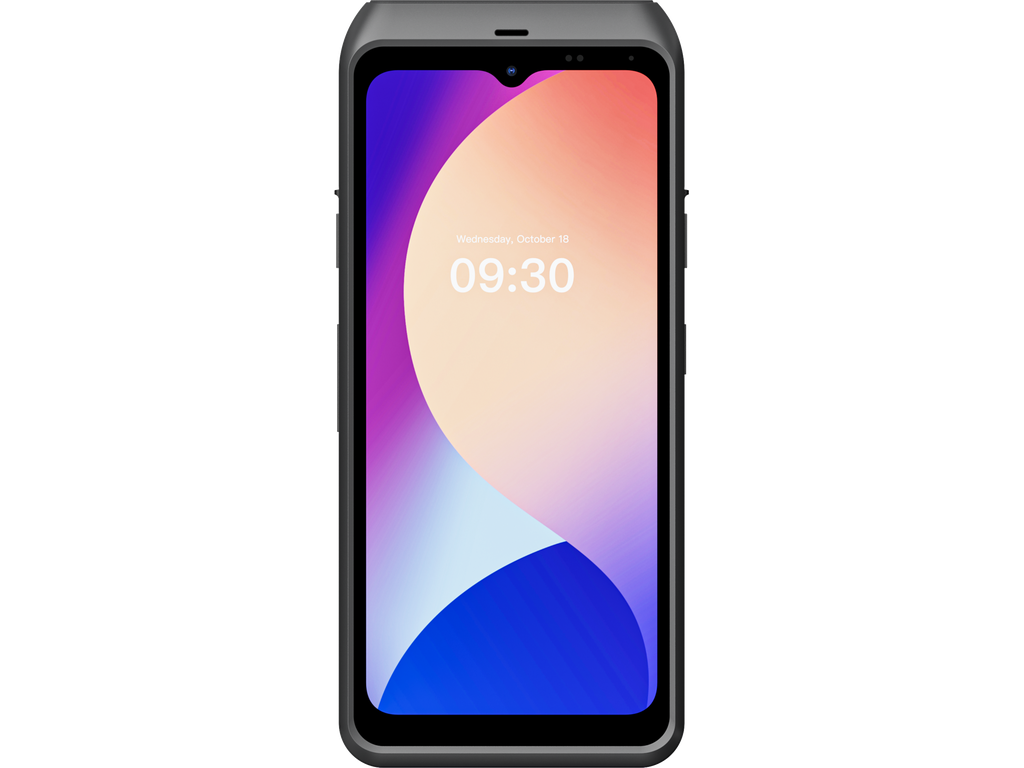

iMin Lark 1 rugged mobile computer with 2D scanner

6.5"

720 × 1600

IP68

1.5 m drop

5000 mAh

removable battery

2 years

warranty

Why iMin Lark 1

A rugged terminal for scanning in the field and warehouse.

Industrial scanner

Omnidirectional 1D/2D code reading at up to 60 cm, two side triggers and an optional trigger handle.

Ruggedness

IP68 protection, 1.5 m drop and -20 to 60 °C operating temperature – for warehouses, logistics, pickup points and outdoor use.

For developers

Android 13 with GMS, iMin SDK for scanner and NFC, support for remote management via MDM and the performance for demanding warehouse and WMS apps.

Available variants

The iMin Lark 1 is available in two configurations. Choose the configuration in the selector above the description.

Lark 1 – 4+32 GB, Totinfo 2D scanner, NFC under the display IMI074Memory: 4 GB RAM + 32 GB ROMScanner: Totinfo 2D scannerNFC: under the displayFingerprint reader: no Lark 1 – 8+128 GB, Zebra 2D scanner, rear-cover NFC, fingerprint reader IMI075Memory: 8 GB RAM + 128 GB ROMScanner: Zebra 2D scannerNFC: in the rear coverFingerprint reader: yes

Product video

Good to know

Card payments (SoftPOS)

NFC variants accept cards via GP tom, Viva or another SoftPOS app – choose it when ordering.

Google services (GMS)

GMS variants are Google certified – Google Play and Google services right on the device.

Partner program

For developers, integrators and resellers

Do you run POS, ordering or payment software on iMin devices? We help you choose the right accessories and with integration.

✓ technical support and integration documentation✓ warranty, service and spare parts in the Czech Republic✓ wholesale prices for partners✓ device demos in our showroom in Brno

Technical specifications

iMin Lark 1	Lark 1 – Totinfo IMI074	Lark 1 – Zebra IMI075
Configuration
Memory	4 GB RAM + 32 GB ROM	8 GB RAM + 128 GB ROM
Scanner	Totinfo 2D scanner	Zebra 2D scanner
NFC	under the display	in the rear cover
Fingerprint reader	no	yes
Common specifications
OS	Android 13 (64bit), GMS	Android 13 (64bit), GMS
CPU	octa-core (2× Cortex-A76 2.2 GHz + 6× Cortex-A55 2.0 GHz)	octa-core (2× Cortex-A76 2.2 GHz + 6× Cortex-A55 2.0 GHz)
Display	6.5" 720 × 1600, capacitive multi-touch	6.5" 720 × 1600, capacitive multi-touch
Camera	13 MP rear, 2 MP front	13 MP rear, 2 MP front
Network	4G LTE, Wi-Fi 5 (2.4/5 GHz), Bluetooth 5.2, GPS	4G LTE, Wi-Fi 5 (2.4/5 GHz), Bluetooth 5.2, GPS
Slots	1× Nano SIM, microSD (TF)	1× Nano SIM, microSD (TF)
Battery	removable 3.87 V / 5000 mAh, up to 10 h, PD 20 W	removable 3.87 V / 5000 mAh, up to 10 h, PD 20 W
Ports	USB-C (OTG), pogo pins for dock (2-pin) and trigger handle (6-pin)	USB-C (OTG), pogo pins for dock (2-pin) and trigger handle (6-pin)
Ruggedness	IP68, 1.5 m drop	IP68, 1.5 m drop
Dimensions	180.5 × 81.4 × 17.2 mm	180.5 × 81.4 × 17.2 mm
Weight	280 g	280 g
Operating temperature	-20–60 °C	-20–60 °C
Certification	Google GMS, FCC, CE, IMDA, WEEE	Google GMS, FCC, CE, IMDA, WEEE
Warranty	2 years	2 years

PDFiMin Lark 1 – datasheet (PDF)Official manufacturer datasheet to download

Specifications are subject to change without notice. Images are for illustration only.

iMin Lark 1 datasheet (2.4 MB)
