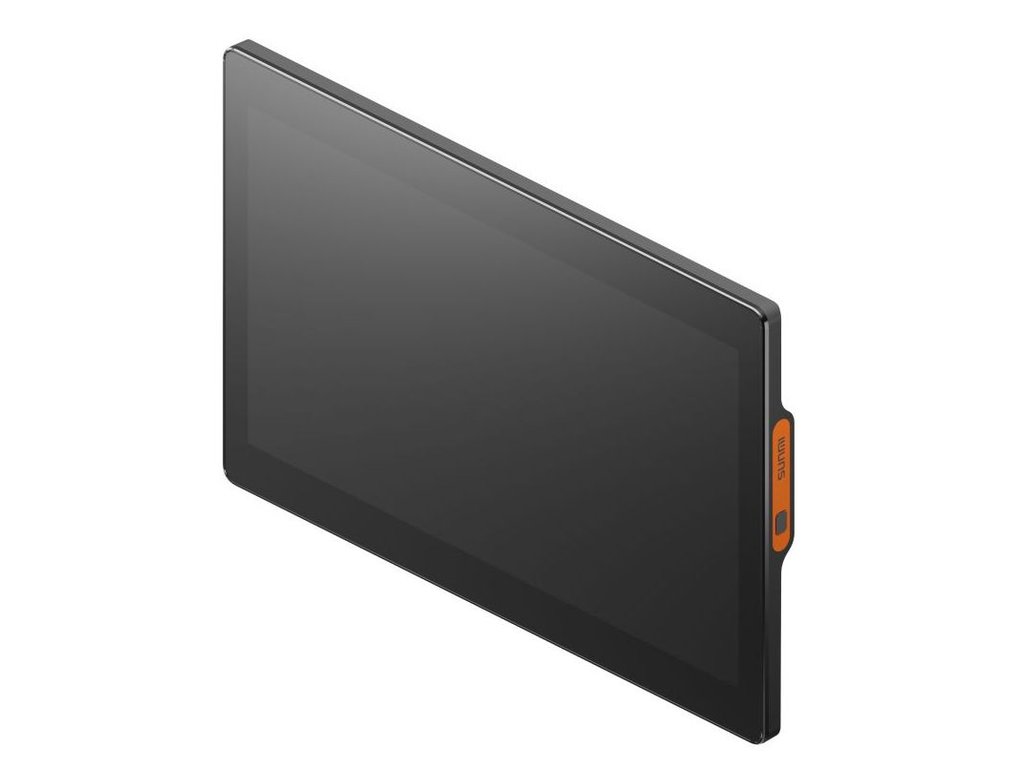

Sunmi D2s KDS - specialised terminal for kitchens
Code: SUN186 SUN247 Choose variantProduct detailed description
Choose the right version
The Sunmi D2S KDS is available in the following variants:
- SUN186: version with POE support
15,6" LCD, 2+8 GB, BT, Wi-Fi, 5G, POE, Android 11 - SUN246: version without POE
15,6" LCD, 2+8 GB, BT, Wi-Fi, 5G, Android 11 - SUN247: version with POE support and extended memory
15,6" LCD, 4+64 GB, BT, Wi-Fi, POE, Android 11
You can also find this product on our official website Sunmi.cz here.
Sunmi vs. Rakeeta
All available variants of the Sunmi D2s KDS can also be purchased in the Rakeeta version. There is no price difference between the Sunmi and Rakeeta versions.
Part of the rakeeta version are applications intended for the Czech market.
A list of applications can also be found at www.rakeeta.cz/aplikace.
The Sunmi version is mainly intended for developers, foreign customers, integrators and resellers with individual settings. Purchase of the Sunmi version is associated with the creation of a Sunmi customer account. If you already have one, please include the account ID in the notes when ordering. If you do not already own one, one will be automatically created for you.
Become a partner
Are you a system integrator? Do you have your own application? Become our partner and run your application on a Sunmi device.
We provide the following for the terminals we sell:
- technical support
- warranties and guarantees
- additional service
- documentation for integration
- two year warranty
- local presence
- presentation of terminals in our showroom in Brno.
If you are interested in wholesale cooperation, please register.
Specifications
| Sunmi D2s KDS (SUN186) | Sunmi D2s KDS (SUN246) | Sunmi D2s KDS (SUN247) | |
| OS | Android 11.0 | Android 11.0 | Android 11.0 |
| Procesor | 1,8 GHz, Cortex-A55, quad-core | 1,8 GHz, Cortex-A55, quad-core | 1,8 GHz, Cortex-A55, quad-core |
| RAM | 2 GB | 2 GB | 4 GB |
| ROM | 8 GB | 8 GB | 64 GB |
| LCD | 15,6", FHD 1920 × 1080 px multi touch | 15,6", FHD 1920 × 1080 px multi touch | 15,6", FHD 1920 × 1080 px multi touch |
| Customer display | ⁻ | - | - |
| Speaker | 1×3 W | 1×3 W | 1×3 W |
| External storage | Micro SD, max 1 TB | Micro SD, max 1 TB | Micro SD, max 1 TB |
| Wi-Fi | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac |
| Bluetooth | 4.2, BLE | 4.2, BLE | 4.2, BLE |
| POE | Yes | - | Yes |
| Interface | 4x USB | 4x USB | 4x USB |
| 1x RJ11 | 1x RJ11 | 1x RJ11 | |
| 1× Switch for auto start | 1× Switch for auto start | 1× Switch for auto start | |
| 1x micro-USB debug | 1x micro-USB debug | 1x micro-USB debug | |
| 1x RJ45, 100 mbps | 1x RJ45, 100 mbps | 1x RJ45, 100 mbps | |
| 1x 3,5 mm audio jack | 1x 3,5 mm audio jack | 1x 3,5 mm audio jack | |
| 1x power port | 1x power port | 1x power port | |
| Dimensions | 382 × 251 × 41 mm | 382 × 251 × 41 mm | 382 × 251 × 41 mm |
| Weight | 1,69 kg | 1,69 kg | 1,69 kg |
| VESA standard | 100 × 100 mm | 100 × 100 mm | 100 × 100 mm |
| Operating temperature | 0 – 40 °C | 0 – 40 °C | 0 – 40 °C |
| Optional* | 4 GB RAM+64 GB ROM | 4 GB RAM+64 GB ROM | |
| 2 M FF camera | 2 M FF camera |
* a minimum order is required, please contact us for more information
The datasheet can be downloaded here.
