Sunmi P2 Mini (Kernel 100) – 5" Android payment terminal, 4G, NFC, PSAM

Code: SUN192PS SUN194 Choose variant

Výprodej

Brand: Sunmi

Sunmi P2 Mini kompaktní platební terminál

Sunmi P2 Mini kompaktní platební terminál – detail 2

Sunmi P2 Mini kompaktní platební terminál – detail 3

Sunmi P2 Mini kompaktní platební terminál – detail 4

Sunmi P2 Mini kompaktní platební terminál – detail 5

Sunmi P2 Mini kompaktní platební terminál – detail 6

Sunmi P2 Mini kompaktní platební terminál – detail 7

€163,93 €198,36 incl. VAT

On stock (2 ks) On stock (5 ks) Choose variant

Choose Sunmi P2 Mini (Kernel 100) configuration ?
Active payment function for CZ ?
Chosen variant is not available. Reset selected parameters.
Deliver in Rakeeta end user version? ?
Estimated monthly turnover at the terminal? ?

Sunmi P2 Mini (Kernel 100): compact 5" Android payment terminal with NFC, chip and magstripe readers, 4G and PCI PTS 5.x. Optional 2D scanner.

Detailed information

Product detailed description

Sunmi · Payment terminal

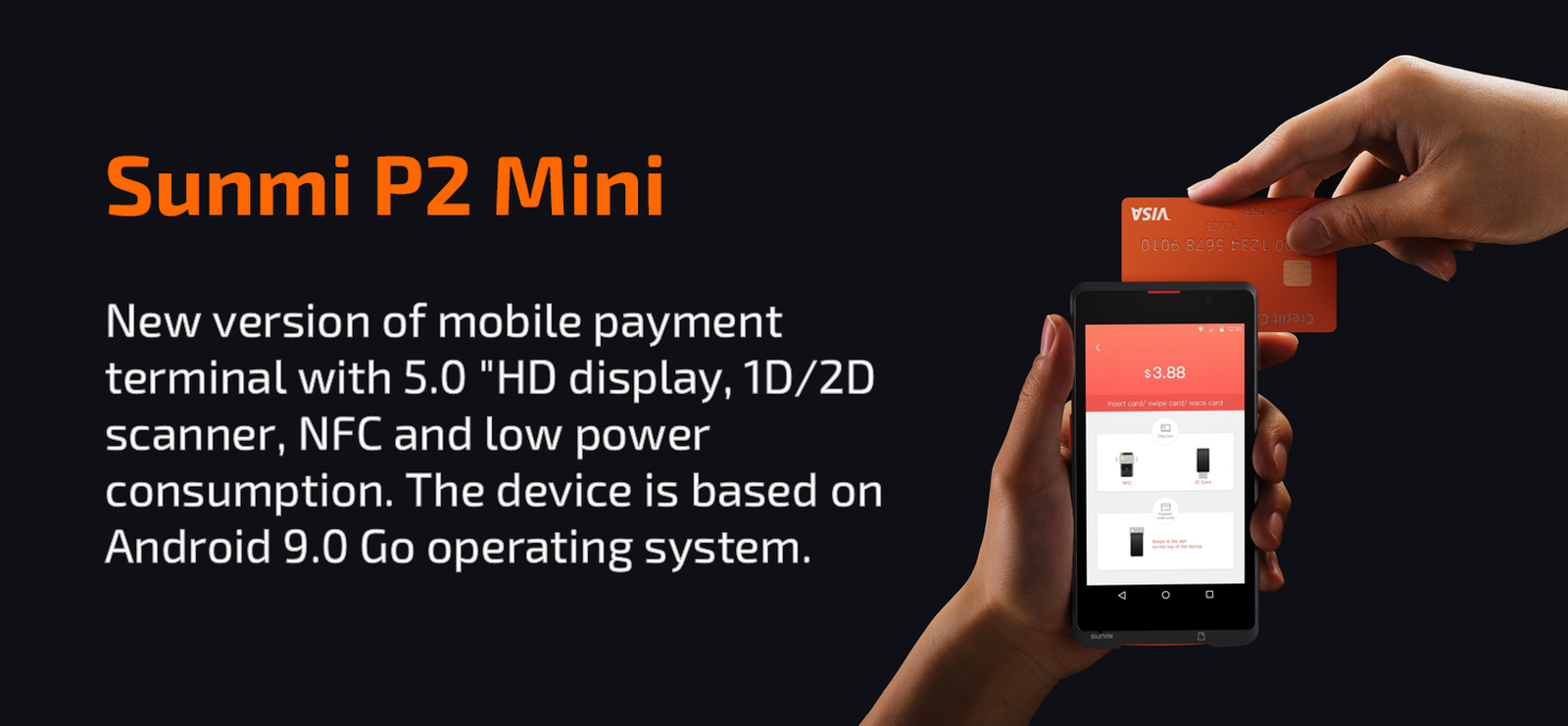

Sunmi P2 Mini (Kernel 100) – a payment terminal the size of a phone

The Sunmi P2 Mini is a compact Android payment terminal with a 5" HD display, NFC, chip and magstripe card readers and PCI PTS 5.x certification. We supply it as SUN192 and as SUN194 with a 2D scanner and phone call support.

5" HD displayNFC + chip + magstripePCI PTS 5.x2-year warranty

HD 1280 × 720

NFC

chip + magstripe

200 g

weight

2 years

warranty

Why Sunmi P2 Mini

A payment terminal for your pocket.

All card types

Contactless NFC, chip and magstripe in a 15 mm thin body – plus QR payments via the 5 MP rear camera.

In the field and at the counter

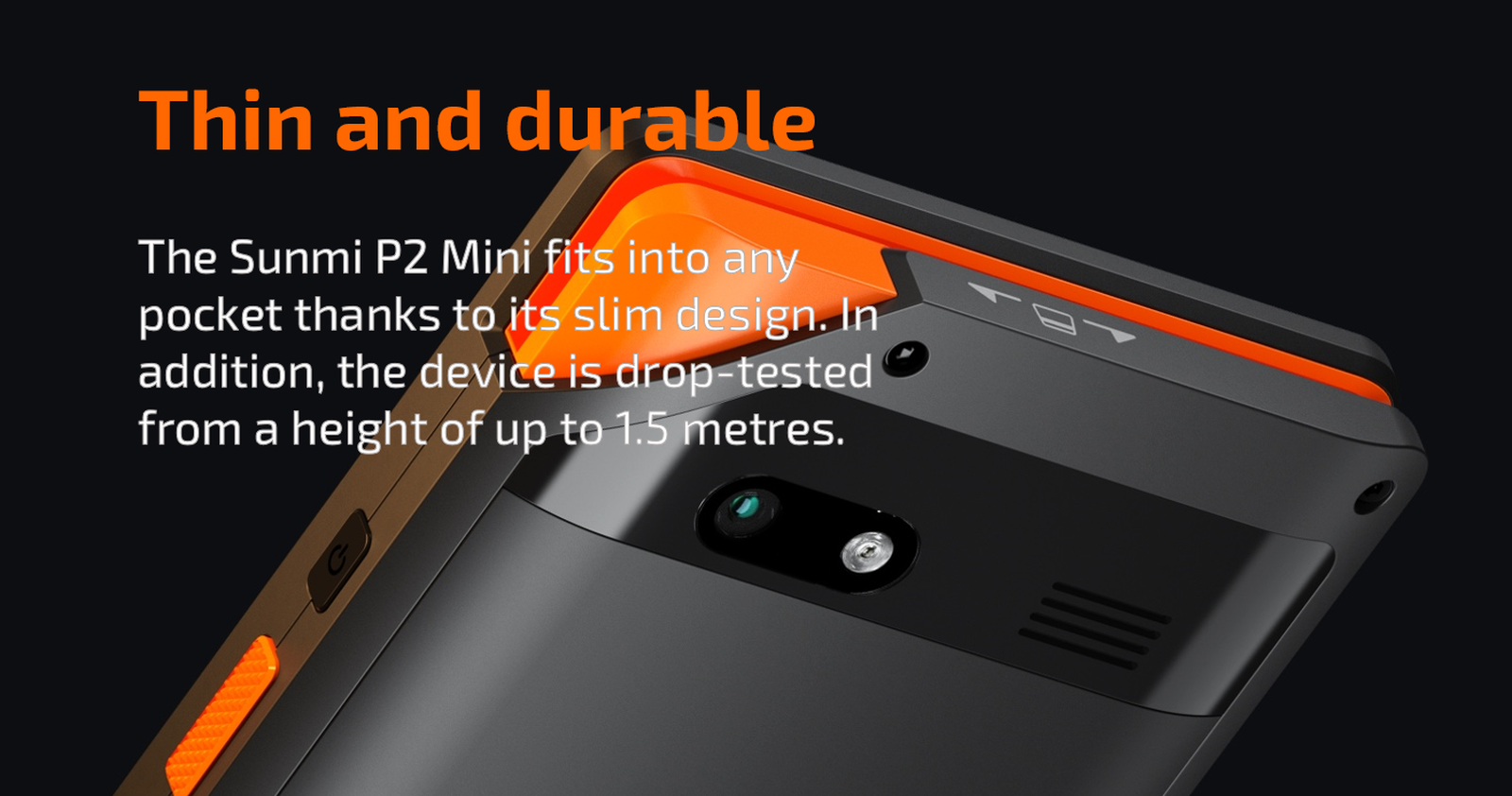

4G, 2.4/5 GHz Wi-Fi, GPS and 1.2 m drop resistance. The SUN194 version adds a 2D scanner and phone calls.

For developers

SUNMI OS based on Android, open SDK for NFC, card readers and PSAM, remote management via Sunmi MDM – deploy your own POS or payment app without hardware changes.

Available variants

Sunmi P2 Mini (Kernel 100) is available in two configurations. Choose the configuration in the selector above the description.

1+8 GB, no scanner, no calls – payment-ready SUN192Memory: 1 GB RAM + 8 GB ROMScanner: no (code reading via camera)Phone calls: noDimensions: 144 × 74 × 15 mmWeight: 200 g 2+16 GB, 2D scanner, phone calls – no active payments SUN194Memory: 2 GB RAM + 16 GB ROMScanner: professional 2D scan enginePhone calls: yesDimensions: 144 × 74 × 15 mm (20 mm at scanner)Weight: 210 g

Product video

Good to know

Card payments in the Czech Republic

We deliver the terminal either ready to accept card payments in the Czech Republic or without active payment functions – e.g. for your own app or another payment provider. Choose the option in the selector above the description. SUN192 is available payment-ready, SUN194 without active payment functions. For the payment-ready option, state the expected monthly turnover when ordering.

Partner program

For developers, integrators and resellers

Do you run POS, ordering or payment software on Sunmi devices? We help you choose the right accessories and with integration.

✓ technical support and integration documentation✓ warranty, service and spare parts in the Czech Republic✓ wholesale prices for partners✓ device demos in our showroom in Brno

Technical specifications

Sunmi P2 Mini (Kernel 100)	P2 Mini SUN192	P2 Mini with scanner SUN194
Configuration
Memory	1 GB RAM + 8 GB ROM	2 GB RAM + 16 GB ROM
Scanner	no (code reading via camera)	professional 2D scan engine
Phone calls	no	yes
Dimensions	144 × 74 × 15 mm	144 × 74 × 15 mm (20 mm at scanner)
Weight	200 g	210 g
Common specifications
OS	SUNMI OS (Android 9.0 Go)	SUNMI OS (Android 9.0 Go)
CPU	quad-core Cortex-A53, 1.8 GHz	quad-core Cortex-A53, 1.8 GHz
Display	5" HD 1280 × 720, IPS, capacitive multi-touch	5" HD 1280 × 720, IPS, capacitive multi-touch
Card readers	NFC (ISO/IEC 14443 A/B, MIFARE, PayPass, payWave), chip ISO 7816/EMV, magstripe tracks 1/2/3 (ISO 7810/7811)	NFC (ISO/IEC 14443 A/B, MIFARE, PayPass, payWave), chip ISO 7816/EMV, magstripe tracks 1/2/3 (ISO 7810/7811)
Security	PCI PTS 5.x, SRED	PCI PTS 5.x, SRED
Camera	5 MP rear AF with flash, 1D/2D code reading	5 MP rear AF with flash, 1D/2D code reading
Slots	1× PSAM; 2× SIM or 1× SIM + microSD (up to 32 GB)	1× PSAM; 2× SIM or 1× SIM + microSD (up to 32 GB)
Network	4G/3G/2G, Wi-Fi 2.4/5 GHz (802.11 a/b/g/n/ac), Bluetooth 5.0 BLE, GPS/AGPS	4G/3G/2G, Wi-Fi 2.4/5 GHz (802.11 a/b/g/n/ac), Bluetooth 5.0 BLE, GPS/AGPS
Battery	Li-Po 3.8 V / 2500 mAh	Li-Po 3.8 V / 2500 mAh
Ports	USB-C (OTG), 3.5 mm audio jack, optional 8× pogo pin	USB-C (OTG), 3.5 mm audio jack, optional 8× pogo pin
Ruggedness	1.2 m drop	1.2 m drop
Operating temperature	0–45 °C	0–45 °C
Certification	EMV L1 & L2, EMV Contactless L1, Visa payWave, Mastercard Contactless, D-PAS, JCB, AE, CE, FCC, RoHS	EMV L1 & L2, EMV Contactless L1, Visa payWave, Mastercard Contactless, D-PAS, JCB, AE, CE, FCC, RoHS
Warranty	2 years	2 years

PDFSunmi P2 Mini – datasheet (PDF)Official manufacturer datasheet to download

Specifications are subject to change without notice. Images are for illustration only.
