Sunmi NC020 Max – large cash drawer 5/10, RJ12, 9–24 V

Code: SUN265

Sunmi NC020 Max pokladní zásuvka – detail 2

€171,03 €206,95 incl. VAT

On stock (>5 ks)

Sunmi NC020 Max: large 430 × 457 × 88 mm cash drawer, 5 bill trays, 10 coin trays, media slot, RJ12, 9–24 V, 3-position lock.

Detailed information

Show all related products

Product detailed description

Sunmi · Cash drawer

Sunmi NC020 Max – high-capacity cash drawer

A large cash drawer with 5 bill trays, a media slot and 4 fixed + 6 removable coin trays – suitable for over 20 currencies. Quiet rails and a rear cable compartment.

5 bills, 10 coinsRJ12, 9–24 V2-year warranty

430 × 457 mm

footprint, 88 mm high

5 + 10

bill / coin trays

1 million

operations service life

2 years

warranty

Why Sunmi NC020 Max

Maximum capacity and durability for busy stores.

Capacity for busy stores

5 bill trays, a media slot and up to 10 coin trays.

Robust build

Rust-free ABS with honeycomb reinforcement bears 10 kg; hidden rails ensure quiet opening.

Status via API

The status switch can be integrated with POS apps to monitor drawer opening anywhere.

Product video

Good to know

Opening without POS

With the Sunmi Cash Drawer Trigger (SUN377) you can open the drawer from a tablet or PC via USB or Bluetooth.

Partner program

For developers, integrators and resellers

Do you run POS, ordering or payment software on Sunmi devices? We help you choose the right accessories and with integration.

✓ technical support and integration documentation✓ warranty, service and spare parts in the Czech Republic✓ wholesale prices for partners✓ device demos in our showroom in Brno

Technical specifications

Sunmi NC020 Max · SUN265
Construction
Material	ABS polymer
Trays	5 bill trays + media slot, 4 fixed + 6 removable coin trays
Bill clips	plastic + metal
Load capacity	10 kg
Lock	3-position (electric opening / manual by key / locked)
Cable storage	rear compartment with cover

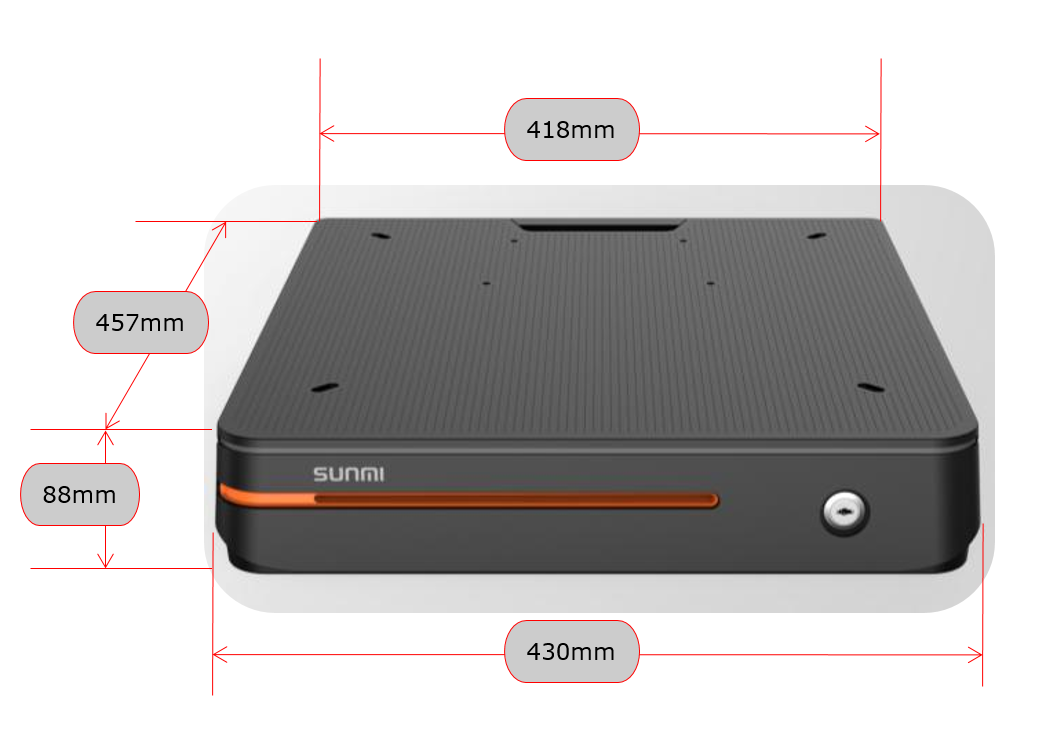

Dimensions (W × D × H)	430 × 457 × 88 mm
Weight	5,8 kg
Electronics
Interface / cable	RJ12 (6P4C), 0,8 m
Drive voltage	DC 9–24 V, 1 A (self-adaptive 9–28 V)
Drive pulse width	100–300 ms
Protections	3 A overcurrent, pulse overvoltage and timeout, ESD 8 kV contact / 15 kV air, thermal shutdown
Status feedback	open-status detection switch
Service life	≥ 1,000,000 operations
Operating environment	0–45 °C, 30–85 % RH
Warranty	2 years

PDFSunmi MAX Cash Drawer – datasheet (PDF)Official manufacturer datasheet to download

Specifications are subject to change without notice. Images are for illustration only.

Sunmi NC020 datasheet (7.1 MB)
