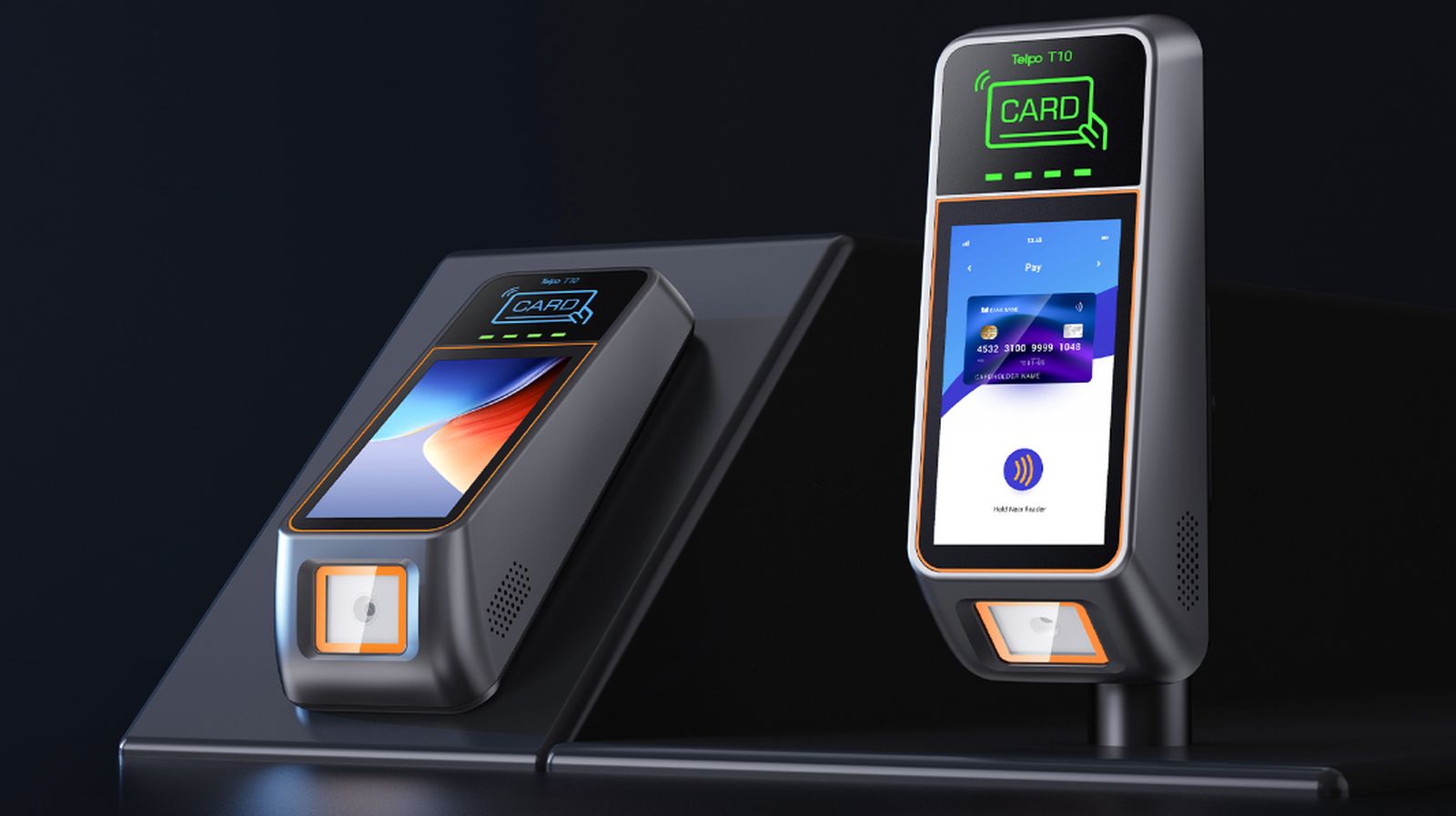

S-Kiosk T10 – ticket validator with 5.5" display, NFC and QR reader

Code: TELP016

Brand: S-KIOSK

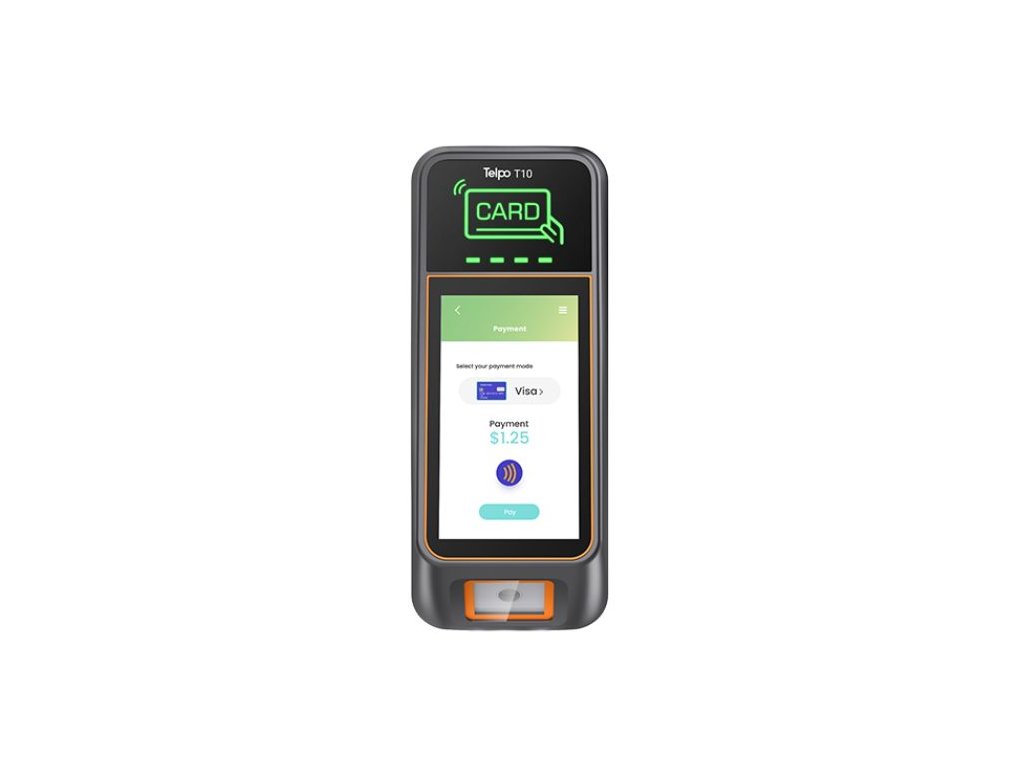

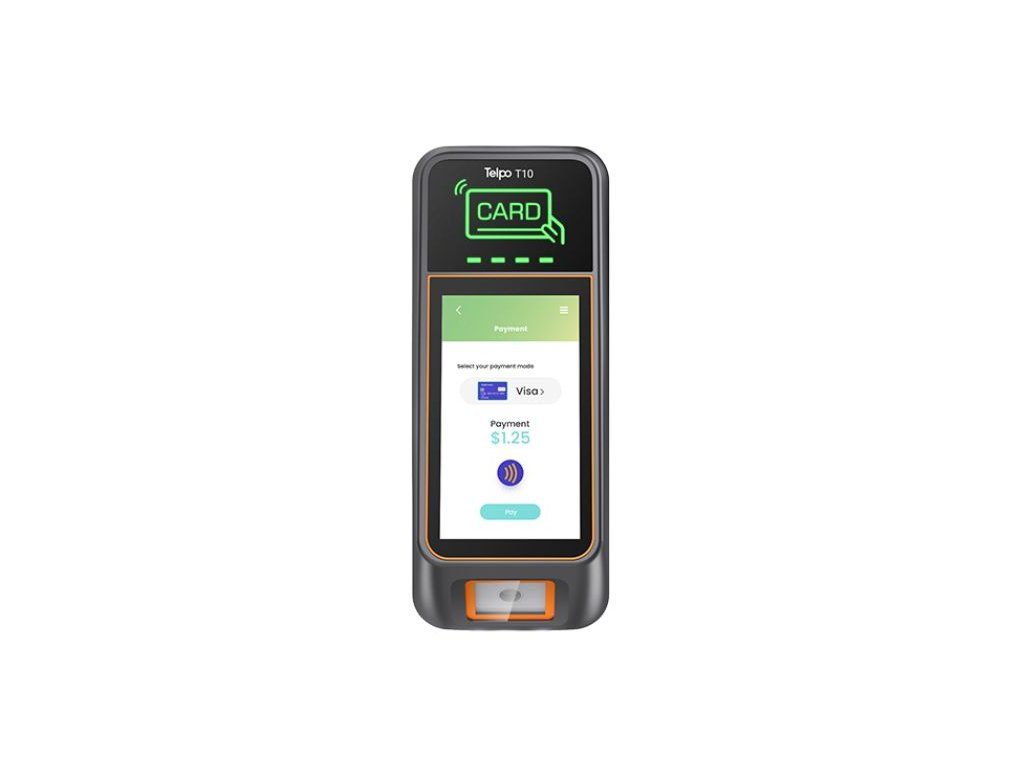

T10 – ověřovač vstupenek a jízdenek s 5,5" displejem, čelní pohled

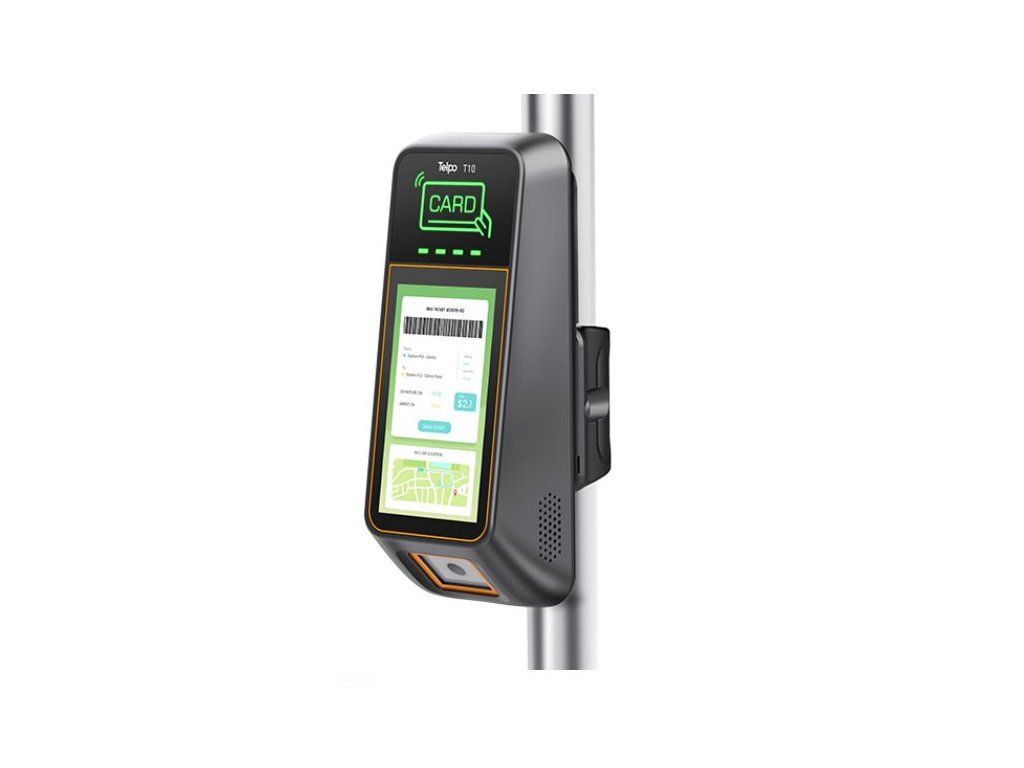

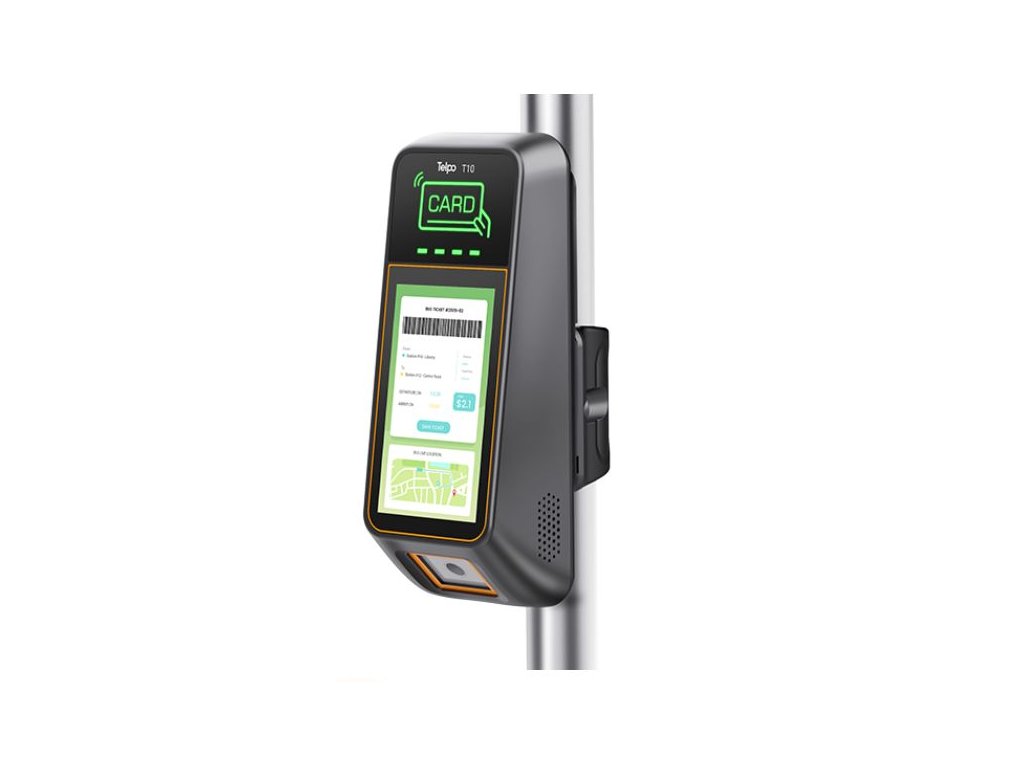

T10 – ověřovač jízdenek s NFC a QR čtečkou na tyči

T10 – bezkontaktní ověření vstupenky QR kódem z mobilu

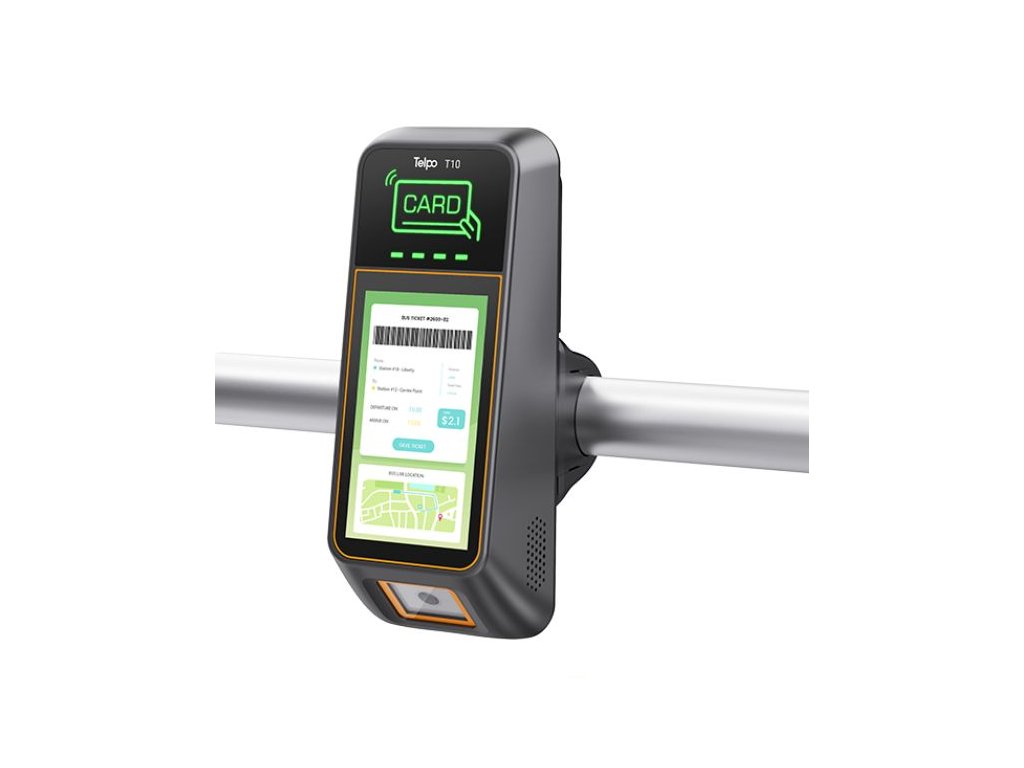

T10 – ověřovač vstupenek namontovaný na madlo ve vozidle

T10 – ověřovač jízdenek s NFC a QR kódem ve veřejné dopravě

€465,46 €563,21 incl. VAT

On order / within 4 weeks after payment of the deposit (1 ks)

Ticket and fare validator with 5.5" display, Android 12, NFC, QR reader, LTE and GPS. Rugged IK06 design for transport and events.

Detailed information

Product detailed description

S-KIOSK · Ticket and fare validator

T10 – ticket validator with 5.5" display, NFC and QR reader

A compact ticket and fare validator with a 5.5" touch display, Android 12, an NFC reader and a 1D/2D scanner. The rugged design (IK06) with status LEDs, RS232/RS485, relay and GPIO suits transport, stadiums and tourist attractions.

Android 125.5" displayNFC + QRLTE / GPSIK06

T10 – ticket and fare validator with 5.5

5.5"

multi-touch display

2 + 16 GB

RAM + storage

NFC + QR

1D/2D scanner

9–40 V

wide power input

Why choose the T10

A rugged, compact validator for transport, sports and culture.

QR and NFC validation

Reads QR codes from phones and paper and contactless cards (ISO 14443 A/B, Mifare, ISO 18092) – optional EMV Contactless and Felica.

Fast response

Quad-core 2.0 GHz processor with 2 GB RAM and 16 GB storage for your validation app.

Industrial interfaces

RS232, RS485, relay, 4× GPIO and LAN with PoE (12/24 V) for turnstiles, gates and other equipment.

Connected anywhere

LTE / WCDMA / GPRS, Wi-Fi, Bluetooth and GPS / GLONASS / BeiDou for vehicles and outdoor use.

Rugged build

IK06 impact rating, operating temperature -20 to +70 °C and 5–98 % RH humidity.

Easy mounting

Fits a pole, handrail or wall; DC 9–40 V power input suitable for vehicles.

Validation in practice

On a pole

post mounting

On a handrail

in public transport vehicles

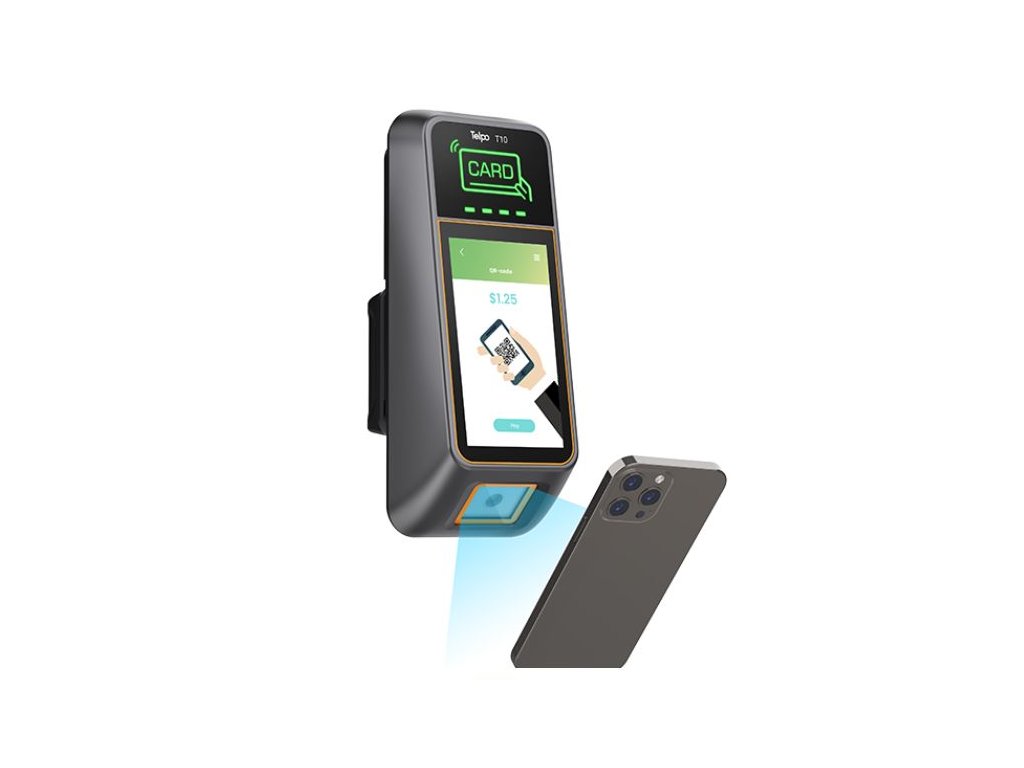

T10 – validating a QR code from a mobile phone

QR from a phone

contactless validation

In practice: public transport, railway and metro stations, stadiums, tourist attractions and cultural events.

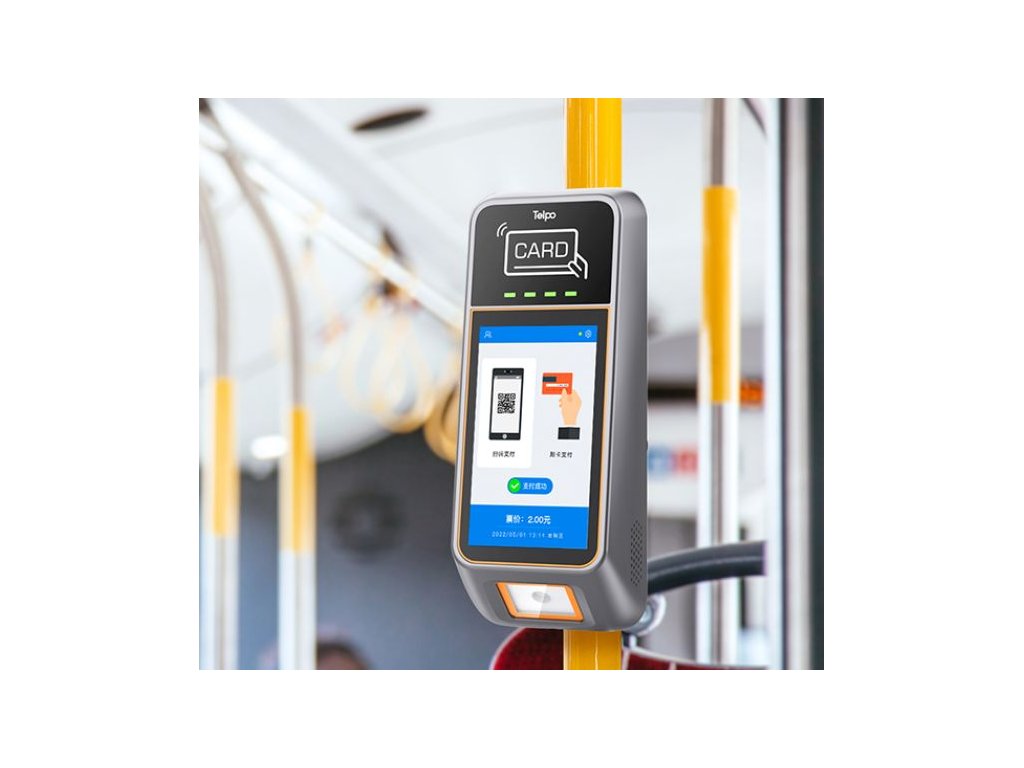

T10 – fare validator in public transport

A validator for public transport

Passengers tap a card or phone or show a QR code, and the coloured LED indicators (green, amber, red) confirm the result instantly.

✓ NFC cards and mobile wallets✓ QR codes from phone or paper✓ LED result indication

Payments, SoftPOS and integration

SoftPOS and contactless payments

Android devices with NFC can run SoftPOS apps that turn a smart device into a payment terminal. A card acceptance agreement is needed before use.

Integration into your system

We provide documentation and an SDK for integration with your ticketing or fare-collection system.

Optional SIM and SAM slots

Up to 2× SIM and 6× SAM for security modules and transport applications.

Partner program

For developers and kiosk solution integrators

Run your ordering, payment or information app on S-Kiosk devices. We help with printer, scanner and NFC integration.

✓ technical support and integration documentation✓ two-year warranty, service and spare parts in the Czech Republic✓ wholesale prices and loan units for pilot projects✓ device demos in our showroom in Brno

T10 technical specifications

T10 · TELP016
System and performance
Operating system	Android 12
Processor	Quad-core 2.0 GHz
Memory	2 GB RAM + 16 GB ROM
Display
Display	5.5" multi-touch LCD
Reading and identification
NFC	ISO 14443 Type A/B, Mifare, ISO 18092; optional EMV Contactless L1, Paywave, Paypass, Felica
Scanner	built-in 1D/2D (hardware decoding)
SIM and SAM slots	2× SIM, 6× SAM
Indication	green, amber and red LEDs; optional 4 lights
Connectivity and ports
Networks	LTE / WCDMA / GPRS, Wi-Fi, Bluetooth
GNSS	GPS / A-GPS, GLONASS, BeiDou
Ports	1× RS232, 1× RS485, 1× USB-C, 1× DC, 1× LAN (non-standard PoE 12/24 V), 1× relay, 4× GPIO (2 in, 2 out)
Audio	speaker
Power and design
Power supply	DC 9–40 V
Impact resistance	IK06
Operating temperature	-20 ~ +70 °C, humidity 5–98 % RH (storage -40 ~ +85 °C)

Specifications are subject to change without notice. Images are for illustration only.
